Integrated system for acquisition, management, and access to structural monitoring data.
Accelerometric sensors · Datalogger · Web platform · Remote management
ARCHITECTURE
System architecture
Sensors, Datalogger, and web platform: three components integrated in a continuous flow from field acquisition to remote access.
BBOX 2.0 Sensors
up to 20 per datalogger

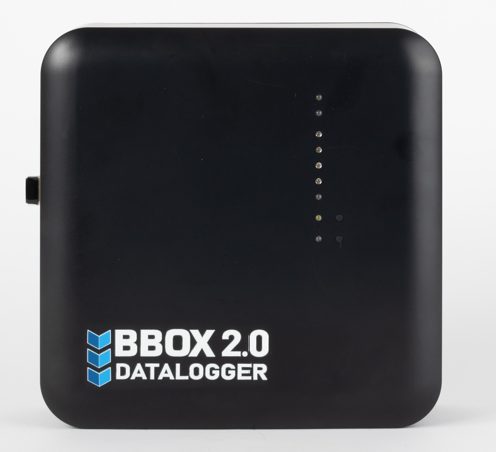

BBOX 2.0 Datalogger
acquisition and processing
Transmission
LAN · 4G/5G
Web platform
access · analysis · export
COMPONENTS
BBOX 2.0 Sensor and Datalogger
The main specifications of the system components. Complete datasheets are available for download.

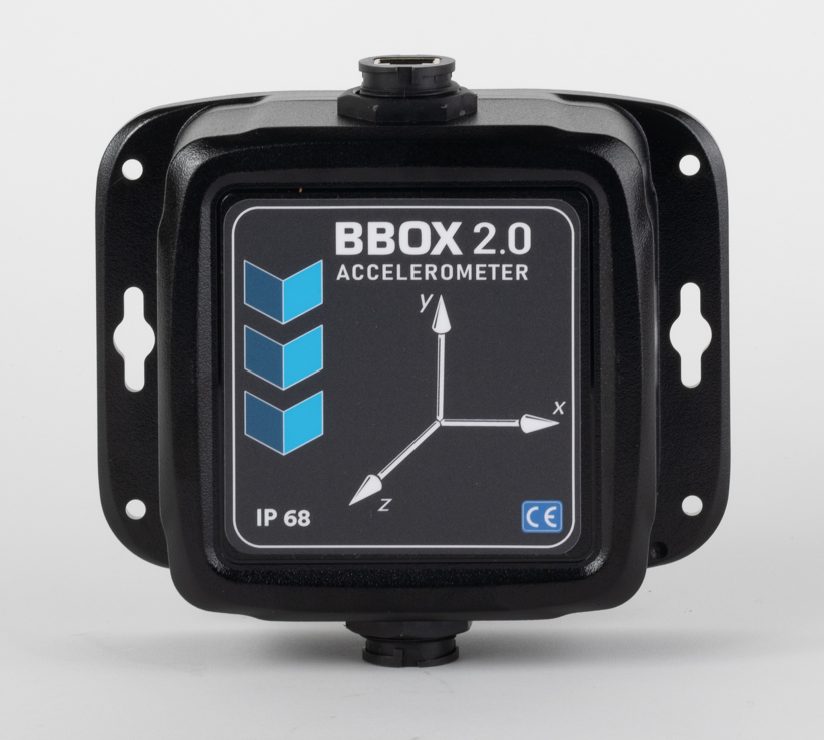

BBOX 2.0 ACCELEROMETRIC SENSOR
Triaxial MEMS accelerometer with digital output, developed for the structural monitoring of any type of building or infrastructure. Configurable for both SHM and Event-Based monitoring.
Central unit for data acquisition, processing, management, and transmission. Modular architecture with full remote management. Capable of receiving data from BBOX 2.0 accelerometric sensors and any other sensor.
The BBOX 2.0 web platform provides centralised access to monitoring data, historical records, and export in standard formats.
Data access
Access to monitoring data acquired by the system.
Acquisition visualisation
Immediate reading of ongoing and recent acquisitions.
Data history
Complete archive of measurements for analysis over time.
Comparative reading
Comparison across periods and sensors to evaluate evolution.
Standard export
Data export in industry-standard formats.
Multi-structure
Centralised access to multiple monitored structures.
INSTALLATION
Daisy-chain wired architecture
The accelerometric sensors are connected to the Datalogger via a single Ethernet cable in a daisy-chain layout. This configuration simplifies on-site installation and maintenance.
Series connection via Ethernet cable
Total length up to 1,000 metres
Multiple Dataloggers can be linked for extended networks
EXPANDABILITY
Open and multi-sensor system
The BBOX 2.0 Datalogger can manage up to 20 accelerometric sensors and up to 36 additional sensors via ESA units, enabling tailored multi-sensor configurations.
BBOX 2.0 enables full system configuration and updates remotely, with no need for physical intervention at each installation.
Activation thresholds
Independent trigger per sensor
Sampling frequencies
32 · 62.5 · 125 · 250 · 500 · 1,000 Hz
Recording mode
Threshold-based · time-based
Recording duration
Pre- and post-trigger duration settings
TECHNICAL DOCUMENTATION
Explore the BBOX 2.0 specifications
Complete datasheets for the BBOX 2.0 components are available on request. For structural monitoring projects, the MOSI team can support the definition of the most appropriate configuration.
